Associated Equipment 6042 Battery and Electrical System Tester
SKU: ASO-6042
Shipping calculated at checkout.
Available to orderCheck the fit before you order. Ceiling height, door width and the route from the street decide whether equipment this size can be delivered and installed. Two minutes on the phone saves a freight truck turning around: 406-604-0949.
Sourced direct from the manufacturer
Every machine we list ships from the manufacturer or their authorized distributor, in the original crate, with the manufacturer's own warranty. We don't rebox, rebrand or drop-ship from marketplace sellers.
Specifications you can check
Where a manufacturer doesn't publish a number, we leave the row out rather than estimate it. If a spec you need isn't here, call us and we'll get it from the manufacturer.
Freight handled properly
Equipment this size moves on an LTL freight carrier, not a parcel van. We check your address for truck access before the order ships, and we'll tell you honestly if you need a liftgate or a pallet jack at your end.
Talk to someone who knows the equipment
Call 406-604-0949, Monday–Saturday, 8am–6pm Mountain. We'd rather spend ten minutes on the phone about your ceiling height and your driveway than have you buy the wrong machine.
We're here when you need us
406-604-0949Monday–Saturday, 8am–6pm Mountain Email usinfo@tourquebay.comAbout this product

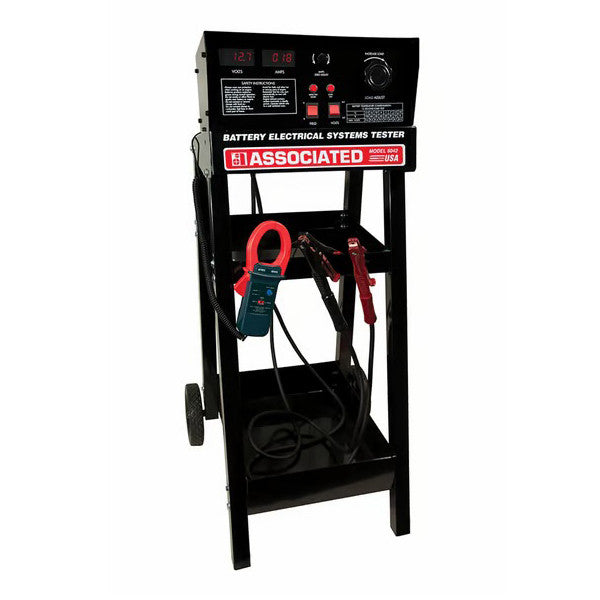

The Associated Equipment 6042 is a carbon pile battery and electrical system tester on a rolling cart - the sort of machine that settles an argument about whether it is the battery, the alternator or something quietly draining the car overnight.
It load tests batteries up to 1000 CCA with a variable 0 to 500 amp carbon pile, and checks charging and starting systems on 12 volt, 12/24 volt and 24 volt vehicles. The ammeter reads both positive and negative amps, so parasitic drain shows up as a number rather than a guess.
The leads are heavy single extrusion and long enough to test up to 15 feet apart, which means the cart stays where it is while you work. There is a Load ON indicator with automatic shut-off, reverse voltage protection and a coated circuit board.
Specifications
Included: 8 foot 4 AWG leads, the Model 6043 1000 amp AC/DC inductive clamp, 500 amp safety clamps with Flexi-Spring and the patented side terminal adapter, separate light gauge test leads, and a heavy-duty two-wheel tilt-back cart with 8 inch wheels and two trays.
Specifications
| Battery testing | Up to 1000 CCA, all battery types |
|---|---|
| System testing | Charging and starting on 12 V, 12/24 V and 24 V |
| Load | 0 to 500 A variable carbon pile, curved carbon discs |
| Voltmeter | 0 to 32.0 V DC, digital LCD |
| Ammeter | 0 to 999 A, reads positive and negative |
| Lead reach | Test up to 15 ft apart |
| Dimensions | 8 in H x 36 in W x 19 in D |
| Weight | 67 lb |
| Origin | Made in USA of US and global components |
| Warranty | 1 year limited |
Figures as published by Associated Equipment. If a specification you need isn't listed, call 406-604-0949 and we'll get it from the manufacturer rather than estimate it.
