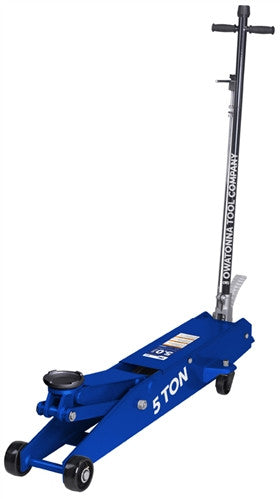

OTC Tools HDJ5 5-Ton Service Jack
SKU: OTCHDJ5
Shipping calculated at checkout.
Available to orderCheck the fit before you order. Ceiling height, door width and the route from the street decide whether equipment this size can be delivered and installed. Two minutes on the phone saves a freight truck turning around: 406-604-0949.
Sourced direct from the manufacturer
Every machine we list ships from the manufacturer or their authorized distributor, in the original crate, with the manufacturer's own warranty. We don't rebox, rebrand or drop-ship from marketplace sellers.
Specifications you can check
Where a manufacturer doesn't publish a number, we leave the row out rather than estimate it. If a spec you need isn't here, call us and we'll get it from the manufacturer.
Freight handled properly
Equipment this size moves on an LTL freight carrier, not a parcel van. We check your address for truck access before the order ships, and we'll tell you honestly if you need a liftgate or a pallet jack at your end.
Talk to someone who knows the equipment
Call 406-604-0949, Monday–Saturday, 8am–6pm Mountain. We'd rather spend ten minutes on the phone about your ceiling height and your driveway than have you buy the wrong machine.
We're here when you need us
406-604-0949Monday–Saturday, 8am–6pm Mountain Email usinfo@tourquebay.comAbout this product
The OTC HDJ5 is a 5 ton service jack with a 47 inch reach - long enough to get to the lift points under a truck or a van without crawling under it first.
It lifts from 6 inches to 22 inches, which is a wide range for a jack this size, and the foot pedal brings the saddle up fast against no load so you are not pumping the handle through the empty travel.
The pump and cylinder are welded, the ram is chrome plated, and there are both overload and bypass safety valves plus a built-in overload stop. It meets all five ASME PASE-2019 safety standards.
At 191 pounds it is not something you slide around with your foot. That weight is the point - it is a stable, heavy, shop-grade jack rather than a portable one.
Specifications
Included: the jack, a one-piece handle and the OTC owner's manual for service jacks.
Specifications
| Capacity | 5 ton |
|---|---|
| Lifting range | 6 in to 22 in |
| Reach | 47 in |
| Saddle | 5 1/8 in diameter, round |
| Frame height | 7.9 in |
| Chassis footprint | 15 in x 56 in |
| Overall dimensions | 56 in x 14.75 in x 7.75 in |
| Handle | 43 in, three position with lock and release controls |
| Casters | Two 4.4 in fixed front, two 2.8 in mid-body swivel |
| Product weight | 191 lb |
| Shipping weight | 253 lb |
| Standards | Meets all five ASME PASE-2019 safety standards |
| Warranty | OTC limited lifetime warranty |
Figures as published by OTC Tools. If a specification you need isn't listed, call 406-604-0949 and we'll get it from the manufacturer rather than estimate it.
