Katool Mid Rise Scissor Lift - 8000lb Capacity | KT-X90E
SKU: KT-X90E
Shipping calculated at checkout.
Available to orderCheck the fit before you order. Ceiling height, door width and the route from the street decide whether equipment this size can be delivered and installed. Two minutes on the phone saves a freight truck turning around: 406-604-0949.
Sourced direct from the manufacturer
Every machine we list ships from the manufacturer or their authorized distributor, in the original crate, with the manufacturer's own warranty. We don't rebox, rebrand or drop-ship from marketplace sellers.
Specifications you can check
Where a manufacturer doesn't publish a number, we leave the row out rather than estimate it. If a spec you need isn't here, call us and we'll get it from the manufacturer.
Freight handled properly
Equipment this size moves on an LTL freight carrier, not a parcel van. We check your address for truck access before the order ships, and we'll tell you honestly if you need a liftgate or a pallet jack at your end.
Talk to someone who knows the equipment
Call 406-604-0949, Monday–Saturday, 8am–6pm Mountain. We'd rather spend ten minutes on the phone about your ceiling height and your driveway than have you buy the wrong machine.
We're here when you need us
406-604-0949Monday–Saturday, 8am–6pm Mountain Email usinfo@tourquebay.comAbout this product

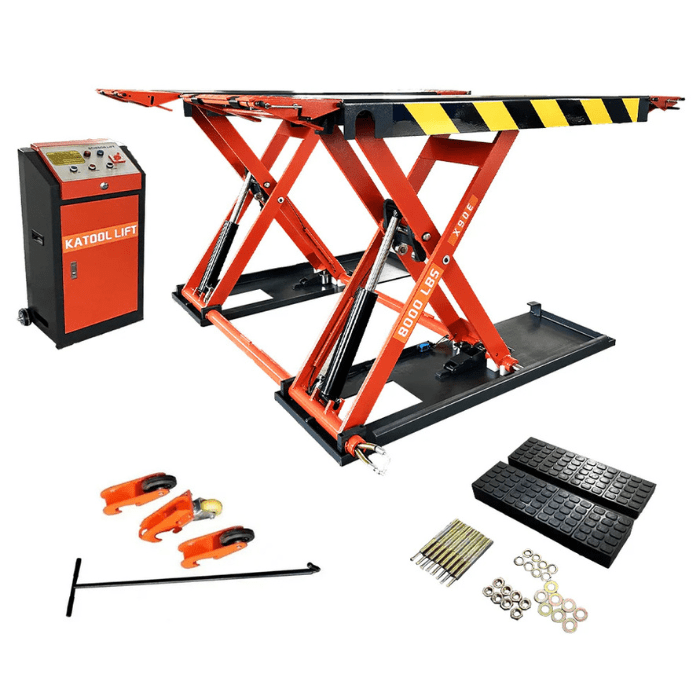

Your Garage Deserves Better. The Katool X90E Mid Rise Scissor Lift Offers Reliability & Safety
Struggling with traditional jack stands or unreliable lifts can slow you down and compromise safety. The X90E 8000lb Mid Rise Scissor Lift by Katool is designed to provide superior lifting power, convenience, and safety for professional mechanics and DIYers alike. With a maximum lifting height of 47 inches, it offers ample clearance for easy access to undercarriages, making maintenance and repairs more efficient. Mid-rise scissor lifts are increasingly the choice for shops where ceiling clearance is limited or where the work mostly involves tire/brake/exhaust service rather than full-vehicle teardowns. The 47-inch lift height is enough for comfortable standing work without committing to a full-rise footprint.
This scissor lift features an 8,000 lb (3,500 kg) lifting capacity, allowing it to handle a wide range of vehicles, from sedans to SUVs and light trucks. The powerful hydraulic system 110V ensures reliable performance, while the aluminum motor with a cooling fan prevents overheating during prolonged use. Additionally, the mobile or fixed mount design provides flexibility, making it a perfect fit for both home garages and professional workshops. 8,000 lb capacity at the mid-rise tier covers virtually every passenger vehicle on the road, including most SUVs and light trucks. The 110V operation means no commercial electrical work for installation in residential or small-shop settings.
For safety and durability, the Katool X90E is equipped with a height limit switch, composite rubber lifting blocks, and a 24V safe control system. It also comes with a one-year warranty on all parts and a three-year warranty on the lift structure, giving you confidence in its long-term performance. Whether you need a reliable lift for daily auto work or occasional maintenance, this scissor lift is built to meet your needs with efficiency and safety. * For owners doing high-volume tire and brake service, or for general-purpose home garages where 90% of work is quick-service tasks, the X90E delivers the right amount of lift without requiring a full-rise install.
Not sure this is the lift you need? We offer Vehicle Lifts with various capacities to match any vehicle.
Benefits of the Katool X90E Scissor Lift
Handles Heavy Vehicles with Ease 8,000 lb capacity covers full-size sedans, SUVs, and light trucks. Three-stage lifting geometry keeps load distributed evenly across the platform width. Increases Safety and Stability Mechanical safety locks engage at multiple positions during the 47-inch lift travel. Composite rubber lifting blocks protect vehicle frame finish. Eliminates the Hassle of Manual Jacks Single-button raise and lower replaces the multi-step floor jack and stand routine. Faster cycle times for quick-service work like tire rotations and brake jobs. Provides Clear Access for Maintenance Work 47-inch lift height puts most service work at comfortable standing height. The space between platforms gives full undercarriage access for brakes, exhaust, and suspension. Designed for Professional and Home Garages 110V plug-in operation works in any standard residential or commercial outlet. No electrician, no 220V circuit, no hardwiring. Reliable Performance with Long-Lasting Durability Heavy-duty steel construction rated for daily cycling. The 24V control system reduces electrical complexity and extends operator safety.Key Features of the Katool X90E 8000lb Scissor Lift You'll Love:
• 8,000 lbs Lifting Capacity: Handles a wide range of vehicles, from cars to light trucks, ensuring stability for all lifting needs. Built with robust materials for long-term durability even under heavy use. 8K capacity at the mid-rise scissor tier covers virtually every passenger vehicle plus most light trucks.
• 47-inch Max Lift Height: Provides ample clearance for easy undercarriage access, making vehicle maintenance simpler and safer. Ideal for tire rotations, brake work, and general repairs. 47-inch lift travel is enough for comfortable standing service work without committing a permanent bay to full-rise.
• 110V/220V Motor Options: Flexible power choices allow compatibility with various garage or shop setups without additional modifications. Runs efficiently for smooth and steady lifting performance. Voltage flexibility means you can install the lift in residential 110V or commercial 220V environments without re-engineering.
• Advanced Safety Mechanisms: Includes a height limit switch and 24V safe control system to reduce operational hazards and enhance reliability, protecting both the user and the vehicle. Mechanical safety locks engage at multiple positions during the lift cycle, with audible engagement confirming each lock seat.
• Durable Hydraulic System: High-quality aluminum motor with a cooling fan prevents overheating, allowing long, uninterrupted work sessions. Designed for seamless lifting without sudden drops. Sealed hydraulic systems and direct-drive design extend service intervals beyond what cable-driven systems sustain.
• Mobile or Fixed Installation: Adaptable design suits various workspace needs, offering the flexibility to move or secure the lift permanently. Optimizes space utilization in garages and commercial shops. Mobile-or-fixed flexibility lets you roll the lift between bays or anchor permanently for high-volume use.
Minimum Garage Requirements
✔ Max Lift Height: 47" (3'11") ✔ Min. Lock Point: 4.3" lowest locking position ✔ Platform Dimensions: 81.5" L x 20.1" W ✔ Concrete Thickness: Minimum 6" (152.4 mm) ✔ Electrical: 110V or 220V, 60Hz, single-phase
✔ Max Lift Height: 47" (3'11")
✔ Min. Lock Point: 4.3" lowest locking position
✔ Platform Dimensions: 81.5" L x 20.1" W
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Electrical: 110V or 220V, 60Hz, single-phase
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Call 406-604-0949 Request a Quote Browse All LiftsKey features and benefits
Specifications
Katool X90E Heavy-Duty Scissor Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 8,000 lbs (3,500 kg) |
| Max. Lifting Height | 47 inches (approximate) |
| Min. Lock Point | 4.3 inches |
| Platform Length | 81.5 inches (2,070 mm) |
| Platform Width | 20.1 inches (510 mm) |
| Width Between Platforms | 32.2 inches (820 mm) |
| Motor | 110V or 220V, 60Hz, single-phase |
| Lifting Time | 30 seconds |
| Rated Hydraulic Pressure | 20 MPa |
| Control System | 24V safe control |
| Mechanical Lock Positions | 5 |
| Hydraulic Oil | AW-46 (AW-32 for colder climates) |
| Steel Grade | Q235 and Q245 steel |
| Safety Certification | CE marking — CE approved, 115% dynamic / 150% static load tested as published by Katool. CE is not ALI certification. |
Figures as published by Katool. If a specification you need isn't listed, call 406-604-0949 and we'll get it from the manufacturer rather than estimate it.
Will it fit your bay?
Enter your bay's ceiling height and the tallest vehicle you'll lift. This gives you the working clearance you'd have left. Check it against the maximum lifting height in the Specifications above.
Delivery and installation
We confirm your order
When your order comes in we check stock with the manufacturer and confirm the shipping address is one a freight truck can actually reach. If anything looks tight (a narrow street, a steep drive, a gated community, a loading dock you don't have) we'll call you at this stage rather than after the truck is dispatched. Orders of $499 or more ship free.
It ships by freight
Equipment this size ships bolted to a pallet on an LTL (less-than-truckload) freight carrier. That is a different service from UPS or FedEx: the carrier calls you to schedule a delivery window, and someone needs to be there to meet the truck and sign for it. You'll get the carrier name and PRO tracking number by email once it leaves the warehouse.
What the driver does
The driver brings the pallet to the back of the truck and no further. Standard freight delivery is to the curb or the end of your driveway, not into your garage, and the driver will not carry, position, uncrate or assemble anything.
If you don't have a forklift, ask us about a liftgate before you order. A liftgate is a powered platform that lowers the pallet from truck height to the ground; that's all it does. It does not move the pallet to your bay and it has a weight limit that some of the heavier lifts exceed. Once the pallet is on the ground it is yours to move, which for equipment this heavy means a pallet jack on flat, solid ground, or two to four people and a plan.
Call us at 406-604-0949 and we'll tell you honestly whether your delivery needs a liftgate, and whether the model you're looking at is too heavy for one.
Inspect before you sign
This is the step that protects you, and it takes ten minutes. Before you sign the delivery receipt, walk the pallet: check the crate for punctures, crushed corners and shifted banding, and check the column and rail surfaces for gouges.
If anything is damaged, write it on the delivery receipt before you sign it ("carton crushed, column scratched," whatever you see) and photograph it while the truck is still there. A signed clean receipt tells the carrier the freight arrived in good order, and once you've signed one, a damage claim becomes very hard to win. Note the damage, sign, keep your copy, and call us the same day at 406-604-0949. We'll get the claim moving with the manufacturer.
Returns
Return terms are set by the manufacturer and differ by brand, so we don't quote a blanket window or fee we might not be able to honour. Equipment must be unused and in its original crate. Call 406-604-0949 before you order if the return terms matter to your decision; we'll get them in writing for that exact model.
Transit damage is not a return. It's a freight claim, and it's ours to handle, not yours. It depends entirely on noting the damage on the delivery receipt before you sign. See "Inspect before you sign" above.
Payment methods
Wire transfer
For larger orders we accept payment by bank wire. Call 406-604-0949 and we'll send the transfer details and confirm the order once funds arrive.
Cards and wallets
Major credit and debit cards and digital wallets are accepted at checkout.
